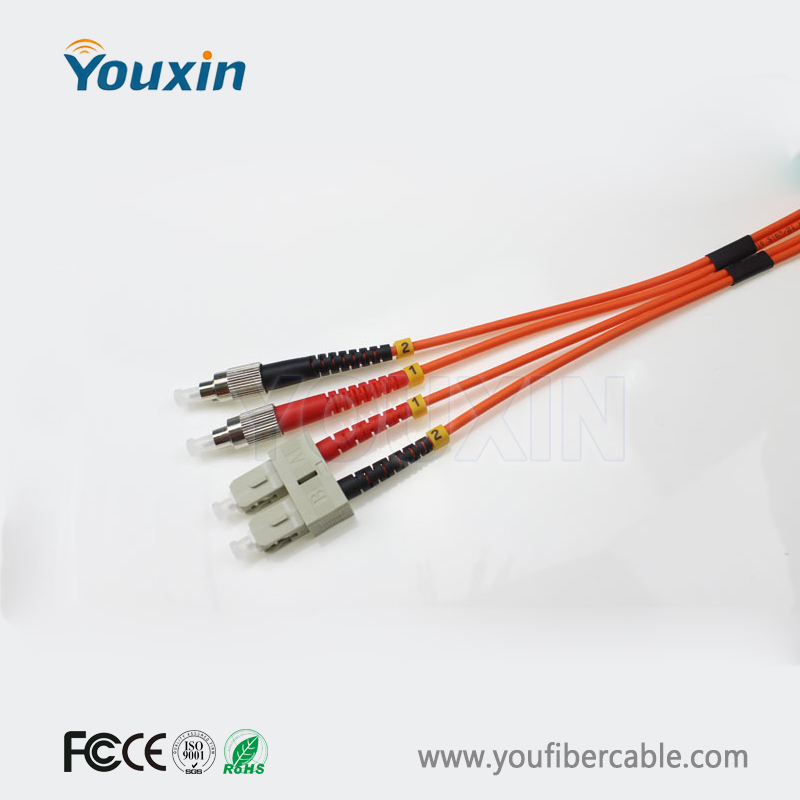

SC/FC Optical fiber patch cord

Model: FPT-SC/PC-FC/PC-SM
Optical fiber patch cord, G652D, 9/125um, single fiber, 2.0mm, LSZH, 3m, single SC to FC

Optical fiber patch cord, G652D, 9/125um, single fiber, 2.0mm, LSZH, 3m, single SC to FC

Features :
◇ Low insertion loss
◇ High return loss
◇ High stability and reliability
◇ SM and MM, single and duplex cores, Φ0.9mm, Φ2.0mm, Φ3.0mm(PVC/LSZH)
◇ length is specified


Parameter

 Item
Specification
SM
MM
PC
UPC
APC
PC
Insertion loss
≤0.20 dB
Max. Insertion loss
≤0.30 dB
Repeatability
≤0.10 dB
Changeability
≤0.20 dB
Return Loss
45 dB
50 dB
60 dB

Operation temperature
-40 ~ +80℃
Storage temperature
-40 ~ +85℃
Fiber type
9/125 um
50/125 um.62.5/125 um
Core number
single or dual fiber
Durability
＞1000 times
Industry standard
Bellcore TA-NWT-001209

Applications
◇ FTTH, LAN, PON & Optical CATV
◇ Local ring net
◇ Optical fiber communication system
◇ Optical fiber test equipment
